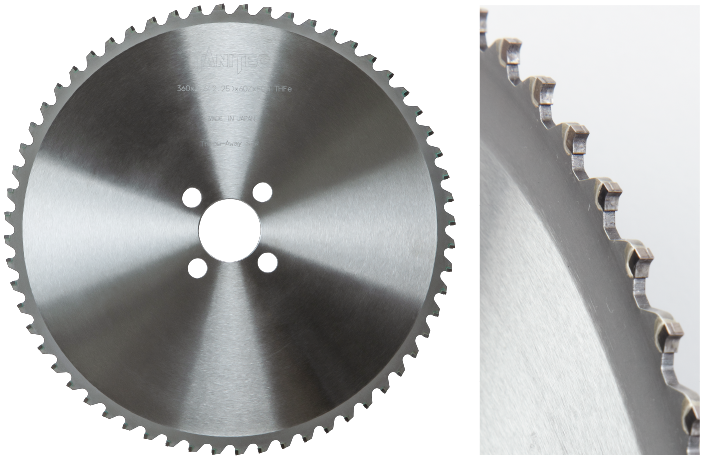

Standard Hard Metal Saw Blade
Our TCT Saw Blade (Hard Metal Saw Blade) is the optimum cutting for the billet, seamless pipe, welded pipe, column for construction, rail for railway, parts for Automobile, forging material and so on. We supply it to the major steel manufactures, which is basic industries in Japan. We provide with the custom saw blades for corresponding to the individual customer requests such as reducing total cutting cost. Our saw blade is used for the automatic cutting machines such as HELLER, KALTENBACH, ENDO, TSUNE, MITSUYA, WAGNER, LINSINGER, and LAZZARI. We provide with TCT Saw Blade in the range ofφ250 to 1600mm diameter.
| Diameter (mm) | 350 | 400 | 710 | 810 | 860 | 960 | 1000 | 1120 | 1160 | 1250 | 1400 | 1600 |
| kerf (mm) | 4.0 | 5.0 | 6.5 | 7.0 | 7.5 | 8.5 | 8.5 | 8.5 | 8.5 | 10.0 | 11.0 | 11.0 |
| number of tooth | 40,44,48,50,54,56,60,64,70,80,90,100,110,120,150,180,200,220,240 | |||||||||||

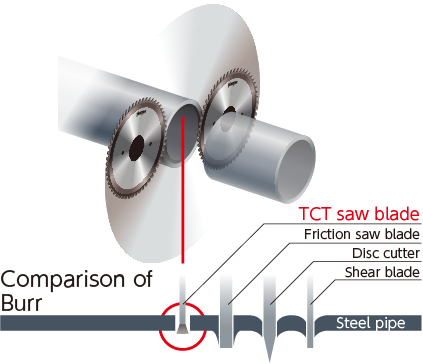

TCT Saw Blade for Milling Cutter
Saw Blade for Milling Cutter
It is TCT saw blade that is especially designed for cutting of the welded tube, structural column with flying cut-off machine in the mill factory. The cutting cycle time for flying cut-off machine is limited because the flying machine and mill conveyor speed is required to be synchronized. This is why TCT Saw Blade is designed for great performance with high circumference and feed speed. Our cutting technologies respond to those requirements and realize the stable blade life. Not only for new blade also for scrap blade, we deal with resharpening services and keep on proposing better cutting performance. This blade is used with NAKATA(SHINKO), KUSAKABE, MITSUBISHI, SUMITOMO, and THERMATOOL machine.
| Customer Information of Milling Cut Off | ||||||
|---|---|---|---|---|---|---|
| Material to be cut. | Circumferential Speed V (m/min) |
Engaging Feed SZ1(mm) Orbital Feed SZ2 (mm) |
Saw Blade Kerf (mm) |
Method | ||
| Range | Thickness Quality Tensile Strength (MPa) |
|||||
| CustomerA | ⟩300~ ⟩450 |
9~19mm SS400 SM500A |
280(t9) 260(t12) 250(t16) |
0.10(t9) 0.10(t12) 0.08(t16) 0.18(t9) 0.18(t12) 0.16(t16) |
350×48Z 360×40Z 4.1(48Z) 5.4(40Z) |
Four Blades |
| CustomerB | ⟩200~ ⟩450 φ12”~ φ24” |
6.4~19mm ≦500 |
300(t6.9) 280(t10.3) 260(t16) 240(t19) |
0.1 0.18 |
350×48Z 350×64Z 4.3 |
Four Blades |
| CustomerC | ⟩100~ ⟩200 φ114.3~ φ267.4 |
2~12mm ≦550 |
200~ 400 | 0.15~0.23 0.13(t<6) 0.23 |
350×48Z 350×64Z 3.7(48Z) 4.3(64Z |
Two Blades |
| CustomerD | φ114~ φ406 |
2~19mm ≦750 |
200~300 | 0.05~0.1 0.1~0.18 |
280×60Z 280×50Z 280×38Z 4.0 |
Four Blades |
| CustomerE | ⟩250~ ⟩500 φ220~ φ660 |
3.5~22mm ≦650 |
200~ 300 | 0.05~0.1 0.1~0.18 |
360×48Z 360×40Z 360×34Z 4.0 |
Four Blades |
| CustomerF | ⟩40~ ⟩150 φ42.7~ φ219 |
2.3~6mm | 200~ 400 | 0.05~0.23 0.23 |
350×48Z 360×40Z 4.1(48Z) 5.4(40Z) |
Two Blades |
| CustomerG | ⟩200~ ⟩400 φ114.3~ φ508 |
~16mm | 300~ 400 | 0.05(Pipe) 0.15~0.23(Column) 0.13~0.19(Pipe) 0.13~0.21(Column) |
380×52Z 380×70Z 4.5 |
Four Blades |
| CustomerH | ⟩150~ ⟩400 φ165.2~ φ406.4 |
2.3~12.7mm STK, STKR ≦550 |
300~ 400 | 380×52Z 380×70Z 4.5 |
Two Blades | |
| CustomerI | ⟩150~ ⟩400 |
6~16mm | 240 | 0.18 0.16 |
380×52Z 380×70Z 4.5 |
Two Blades |
| CustomerJ | φ190~ φ609.4 |
3~19mm | 180~280 | 0.06~ 0.1 0.15~ 0.18 |
340×34Z 340×48Z 4.3 |
Four Blades |
| CustomerK | φ139.7~ φ426 Seamless Pipe |
4~50 Carbon Steel, Alloy SUS ≦1125 |
50~220 | 0.15ma× | 430×54 5.3 6.0 |
Two Blades |
| CustomerL | ~6inch | 2.3~12.7 | 400~850 | 0.15ma× | 320×52Z 320×64Z 320×72Z 3.1 |
Two Blades |
| CustomerＭ | ~6inch | 2.3~9 | 700~1000 | 0.08ma× | 355×72Z 355×90Z 355×120Z 2.3 |
Two Blades |

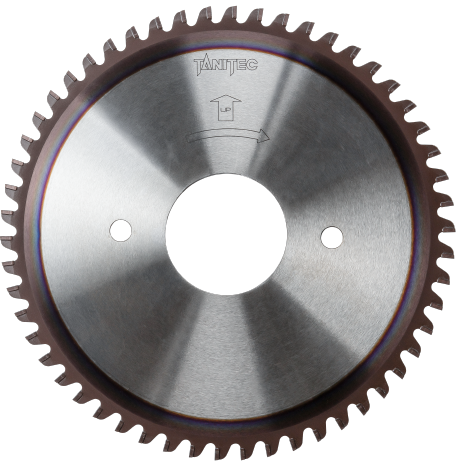

Throw-Away TCT Saw Blade
Throw-Away TCT Saw Blade
It is a throw-away type of TCT Saw blade applicable to the cutting of solid bar. The tooth hook and clearance angle are precisely designed and developed by our special technologies. Our throw-away TCT saw blade deal with cutting of automobile parts and forged materials which requires severe cutting controls of section, precision, and running cost. This blade saw can be used with Amada, Noritake, Tsune and Nishizima machine.
■Standard size
| Cutting machine | Diameter（mm） | Kerf（mm） | Central bore（mm） | number of tooth | pin holes | cutting capacity（mm） | |
|---|---|---|---|---|---|---|---|
| Tsune | 250 | 2.0 | 32 | 54 60 72 |
63ｘ11.5ｘ4 | φ40～φ50 | |
| 63ｘ11.5ｘ4 | φ30～φ40 | ||||||
| 63ｘ11.5ｘ4 | φ15～φ30 | ||||||
| 280 ※(285) |
2.0 | 32 | 54 60 72 80 |
63ｘ11.5ｘ4 | φ50～φ65 | ||
| 63ｘ11.5ｘ4 | φ35～φ50 | ||||||
| 63ｘ11.5ｘ4 | φ20～φ35 | ||||||
| 63ｘ11.5ｘ4 | φ15～φ30 | ||||||
| 360 | 2.6 | 50 | 60 80 100 |
80ｘ15ｘ4 | φ55～φ100 | ||
| 80ｘ15ｘ4 | φ30～φ50 | ||||||
| 80ｘ15ｘ4 | φ20～φ30 | ||||||
| Noritake-Amada | 280 | 2.0 | 40 | 54 60 72 80 |
80ｘ11ｘ4 | φ50～φ65 | |
| 80ｘ11ｘ4 | φ35～φ50 | ||||||
| 80ｘ11ｘ4 | φ20～φ35 | ||||||
| 80ｘ11ｘ4 | φ15～φ30 | ||||||
| 360 | 2.6 | 40 | 60 80 100 |
90ｘ11ｘ4 | φ55～φ100 | ||
| 90ｘ11ｘ4 | φ30～φ50 | ||||||
| 90ｘ11ｘ4 | φ20～φ30 | ||||||
| 460 | 2.7 | 50 | 60 80 100 |
||||
| Nishijima | 360 | 2.6 | 50 | 60 80 100 |
80ｘ16ｘ4 | φ55～φ100 | |
| 80ｘ16ｘ4 | φ30～φ50 | ||||||
| 80ｘ16ｘ4 | φ20～φ30 | ||||||
| KASTO | 360 | 2.6 | 50 | 60 80 100 |
80ｘ14ｘ4 | φ55～φ100 | |
| 80ｘ14ｘ4 | φ30～φ50 | ||||||
| 80ｘ14ｘ4 | φ20～φ30 | ||||||
| I.T.E.C. | 250 | 2.0 | 32 | 54 | 63×11.5×4 | φ40-φ50 | |
| 60 | 63×11.5×4 | φ30-φ40 | |||||
| 72 | 63×11.5×4 | φ15-φ30 | |||||
| 285 | 2.0 | 32 | 54 | 63×11.5×4 | φ50-φ65 | ||
| 60 | 63×11.5×4 | φ35-φ50 | |||||
| 72 | 63×11.5×4 | φ20-φ35 | |||||
| 80 | 63×11.5×4 | φ15-φ30 | |||||
| 360 | 2.6 | 40 | 60 | 63×11.5×4 | φ55-φ100 | ||
| 80 | 63×11.5×4 | φ30-φ50 | |||||
| 100 | 63×11.5×4 | φ20-φ30 | |||||
| 425 | 2.7 | 50 | 40 | 80×16×4 | φ80-φ130 | ||
| 60 | 80×16×4 | φ60-φ80 | |||||
| 80 | 80×16×4 | φ40-φ60 | |||||
| 100 | 80×16×4 | φ20-φ40 | |||||

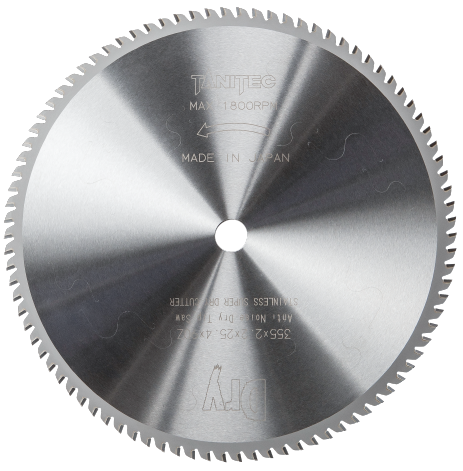

Dry Tip Saw
Dry Tip Saw
Tungsten Carbide Tipped Saw Blade for metalworking. Strong brazing of Carbide Tips and our exclusive tooth form realized high-speed and completely dry cutting. (without any lubrication) We have three kinds of blade diameter φ305, 355, 405mm, and it has anti-noise slot and resin filling inside the slot.
| Dry Tipped Saw | Diameter×Thckness×Bore×Number of tooth (mm) | Recommended with machines models | |
|---|---|---|---|
| DTS1940 | 192×1.85×20×40 | Jepson 8219 | |
| DTS1948 | 192×1.85×20×48 | Jepson 8219 | |
| DTS3072 | 305×2.0×25.4×72 | Jepson 9312S | |
| DTS3580 | 355×2.2×25.4×80 | Jepson 9314-T2 | |

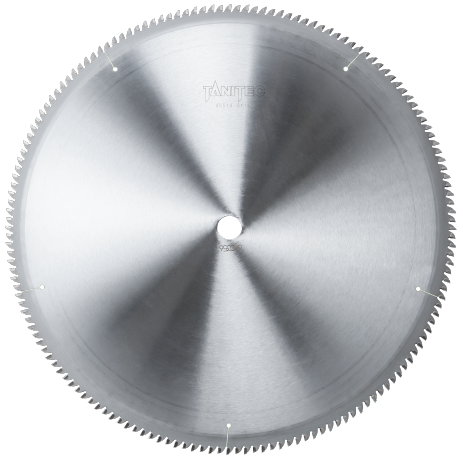

TIP SAW for nonferrous metals
TIP SAW for nonferrous metals
TANITEC Tip Saw Blade is designed for cutting of non-ferrous metal such as aluminum, and copper and also designed as woodworking or resin cutter such as plastics and PVC. The Tip Saw Blade is also manufactured under excellent quality control of every process from hardening to brazing process. TANITEC provides with custom-made saw blades according to customer requests and suggests the best cutting solutions or selection of tooth form, based on our experience.
| Standard size of Tipped saw Diameter×Thickness×Bore×Number of tooth×Tooth form | |
|---|---|
| 203×2.5×25.4×50×D2 | 405×3.1×25.4×100×D2 |
| 255×2.5×25.4×80×D2 | 405×3.1×25.4×120×D2 |
| 305×2.7×25.4×80×D2 | 455×3.1×25.4×100×D2 |
| 305×2.7×25.4×100×D2 | 455×3.1×25.4×120×D2 |
| 355×3.0×25.4×100×D2 | 455×3.4×25.4×120×D2 |
